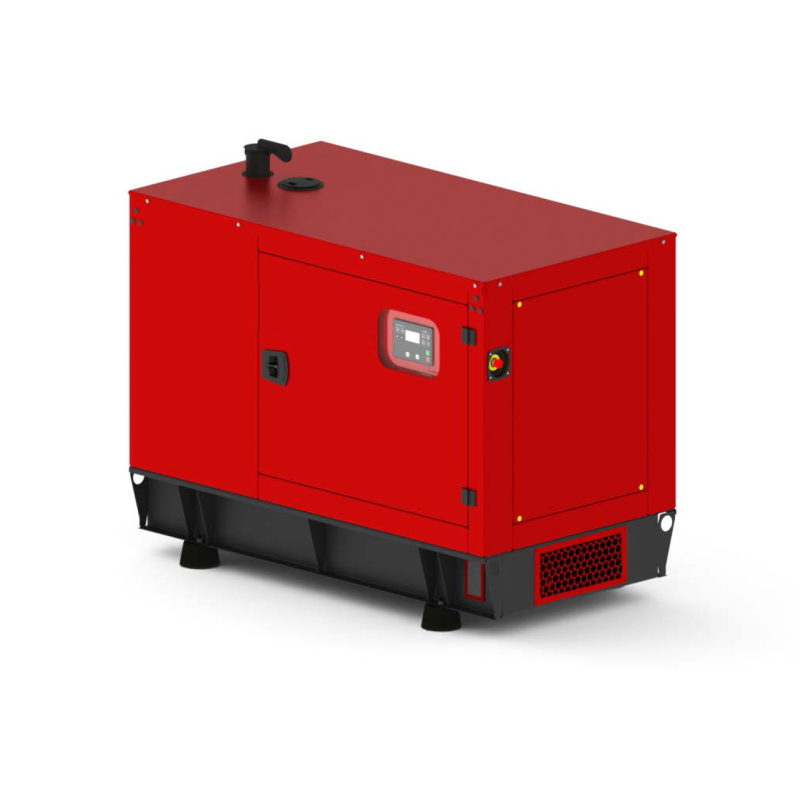

Stationary generator 12 kW AP 17 B

AP 17 B three-phase generator – reliable Baudouin power for small consumers

What is the AP 17 B generator?
The AP 17 B is a compact three-phase generator with a maximum output of 17 kVA / 13.6 kW , ideal for emergency or primary power in small workshops, farms, administrative buildings, and service outlets. Equipped with a modern Baudouin 4M06G2D0 engine, it meets the requirements of Directive 97/68/EC regarding exhaust emissions.

What are the key technical parameters of the AP 17 B generator?

• ESP maximum power: 17 kVA / 13.6 kW

• PRP rated power: 15 kVA / 12 kW

• Rated current: 22.2 A

• Nominal voltage: 400 V

• Frequency: 50 Hz

• Generator: STATHON ECO 17 KW, brushless, synchronous

• AVR Type: DVR, Digital

• Protection class: IP 23

• Insulation class: H

• Generator efficiency: 93%

Why choose the AP 17 B generator?

What makes AP 17 B different?
✅ Baudouin 4M06G2D0 engine: 4-cylinder in-line, capacity 2.3 l, power 20 kW, electronic speed controller – stable operation even under variable load.
✅ AMF 25 controller: Intuitive graphical interface, automatic start, current and voltage measurement in 3 phases, event log (up to 119 entries), energy meter, online monitoring (GSM, LAN, Modbus).
✅ Economical fuel consumption: Only 4.7 l/h at 100% load, 50 l fuel tank ensures many hours of uninterrupted operation.
✅ Quiet operation: In a soundproof housing, the noise level is only 70 dB(A) at a distance of 7 m.

Where is the AP 17 B power generator best suited?

AP 17 B is a reliable energy source for:

• workshops and small service establishments,

• farms,

• administrative and office buildings,

• service facilities requiring power supply protection,

• places where low fuel consumption and compliance with emission standards are key.

What additional options does the AP 17 B unit offer?

You can expand the unit with:

• external fuel tank,

• spark arrester,

• differential protection,

• remote monitoring (GSM, LAN, Modbus),

• synchronization with other units,

• ventilation and exhaust system,

• available in a different voltage version,

• external SZR cabinet (IP54),

• foundation slab.

What is the service and operation of AP 17 B generators like?

How to take care of the generator?
? Oil and filter change: after the first 100 hours of operation, then every 500 hours or every year.
? Coolant: replace every 1000 hours or every 2 years (capacity: 8.6 l).
? AMF 25 Controller: allows remote monitoring, SMS/email notifications, InteliMonitor and WebSupervisor.

What are the warranty conditions for the AP 17 B?

• Reserve mode: 60 months (or 1000 operating hours) – when performing periodic inspections.

• Continuous operation mode: 12 months (or 1000 operating hours).

Choose reliable power supply with AP 17 B

The AP 17 B offers economical power, quiet operation and full compliance with emission standards – wherever electricity must be available at all times.

Contact us and request an offer tailored to your needs!
