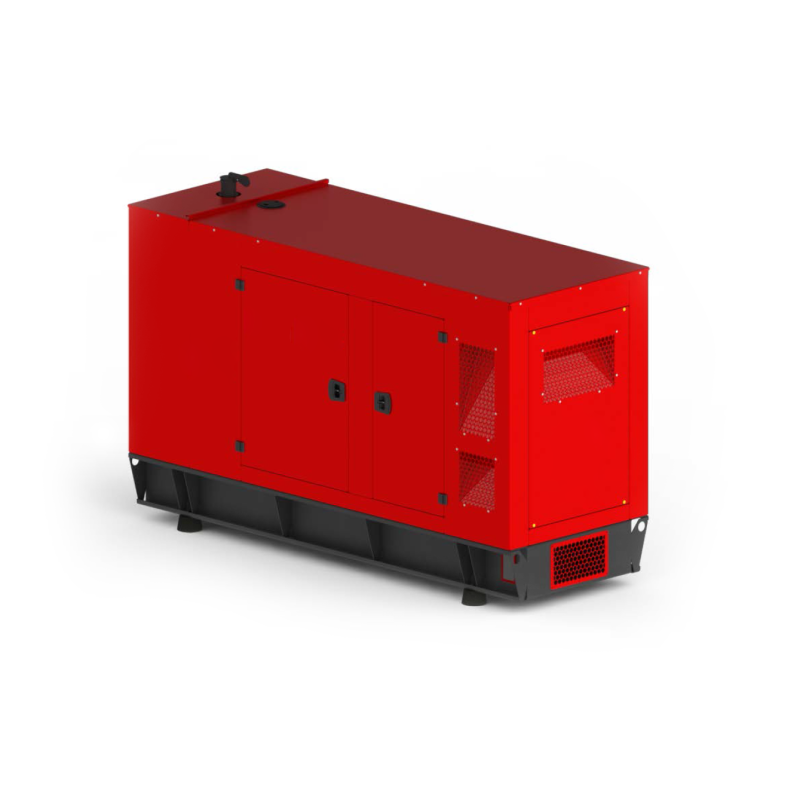

Stationary generator 108 kW AP 150 BG

AP 150 BG generator – reliable power for natural gas

What is the AP 150 BG generator?
The AP 150 BG is a modern, natural gas-powered generator with a maximum output of 150 kVA/120 kW . It's a cost-effective, eco-friendly solution for emergency or continuous power – ideal for medium-sized industrial facilities, warehouses, offices, and service buildings.

Key technical parameters of the AP 150 BG gas generator:

• ESP maximum power: 150 kVA / 120 kW

• PRP rated power: 135 kVA / 108 kW

• Rated current: 195.8 A

• Nominal voltage: 400 V

• Frequency: 50 Hz

• Generator: STRATHON ECO 150 KW, brushless, synchronous

• Generator efficiency: 93%

• Protection class: IP 23

• Insulation class: H

Why choose the AP 150 BG natural gas generator?

What makes the AP 150 BG generator stand out?
✅ Natural gas instead of diesel: The BAUDOUIN 6M11G4N0 engine with a capacity of 6.75 l and a power of 132 kW reduces exhaust emissions and lowers fuel costs.
✅ Full automation: The AMF 25 controller provides automatic start-up, monitoring of operating parameters and online notifications.
✅ Quiet operation: In a sound-proof housing, the noise level is only 70 dB(A) at a distance of 7 m – ideal for working near residential buildings.
✅ Robust equipment: Electronic speed controller, engine block heating system, vibration isolators and fault indication.

Where is the AP 150 BG gas generator best suited?

AP 150 BG is the perfect choice for:

• medium-sized industrial plants,

• warehouses and logistics centers,

• office and administrative buildings,

• smaller healthcare facilities,

• companies focusing on lower CO₂ emissions.

What additional options can you choose?

You can expand the unit with:

• external fuel tank,

• differential protection,

• spark arrester,

• synchronization with other units,

• remote monitoring (LAN, RS232-485, GPRS, GSM),

• ventilation and exhaust system,

• version with a different voltage configuration,

• external SZR cabinet (IP54),

• foundation slab.

What is the service and operation of AP 150 BG natural gas generators like?

How to take care of the generator?
? Oil and filter change: after the first 100 hours of operation, then every 500 hours or every year.
? Coolant: replace every 1000 hours or every 2 years.
? AMF 25 Controller: enables remote monitoring, SMS/email notifications and app access.

What are the warranty conditions for the AP 150 BG?

• Reserve mode: 60 months (or 1000 operating hours).

• Continuous operation mode: 12 months (or 1000 operating hours).

Choose a quiet and ecological power supply with the AP 150 BG

The AP 150 BG ensures that your business will operate without interruption – quietly, economically and in compliance with environmental requirements.

Contact us and request an offer tailored to your needs!
