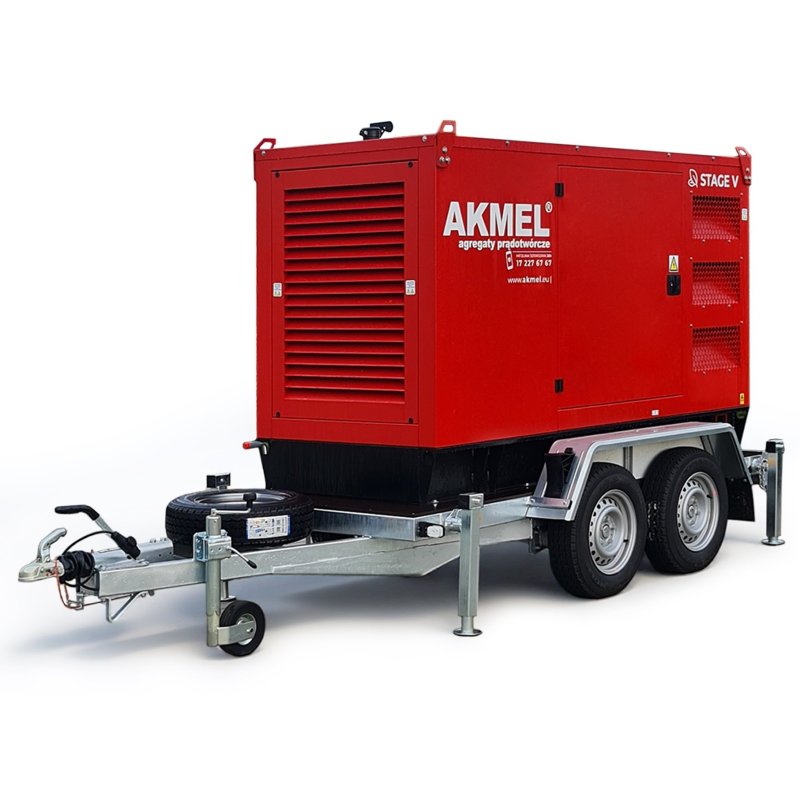

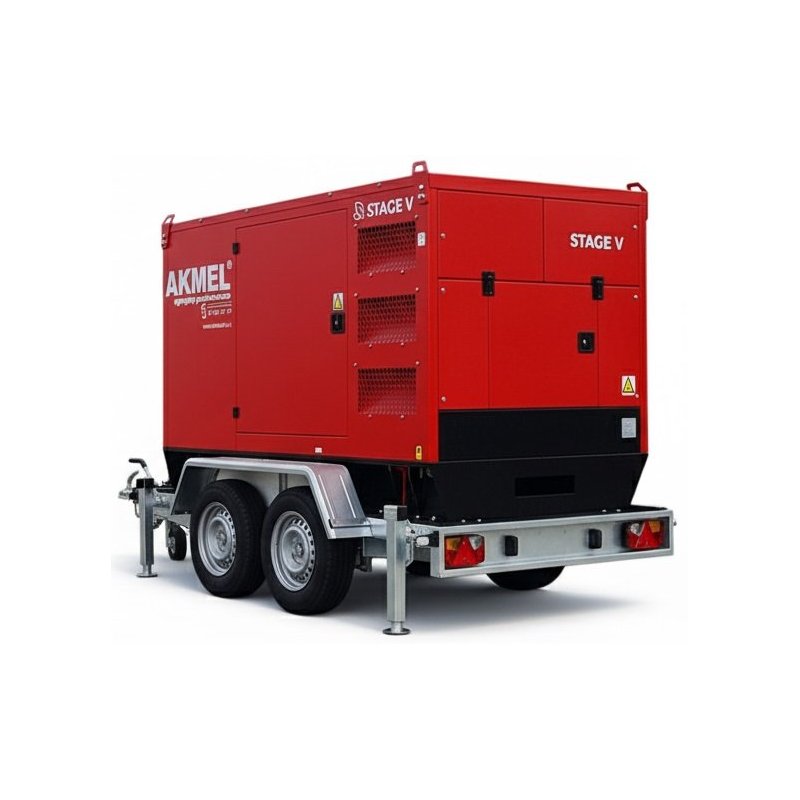

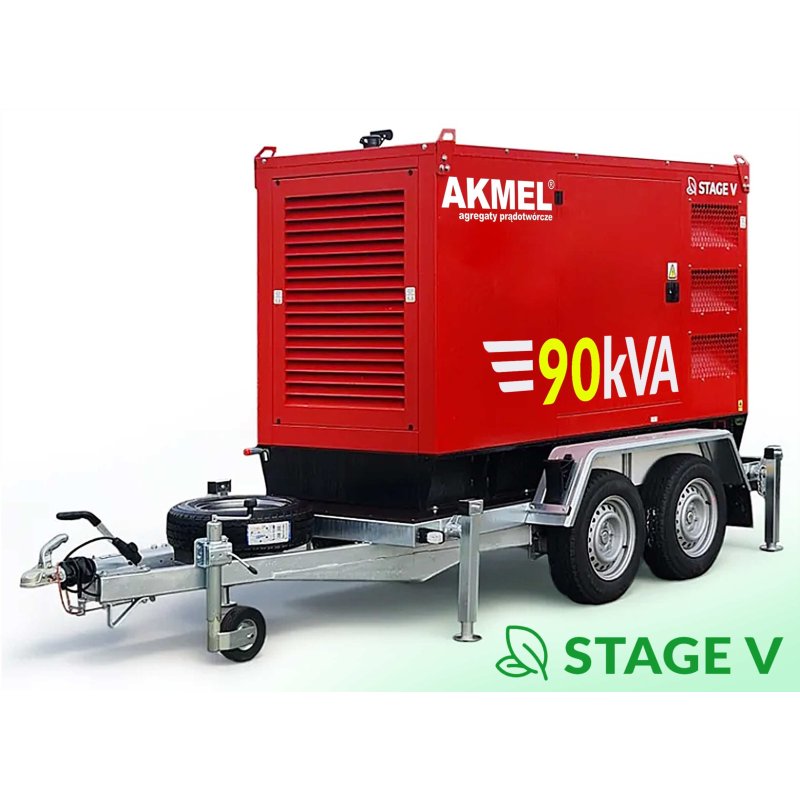

AP 90 I5 three-phase generator – compact power with an IVECO Stage V engine

What is the AP 90 I5 generator?
The AP 90 I5 is a modern three-phase generator with a maximum output of 90 kVA / 72 kW , equipped with an IVECO engine that meets the Stage V emissions standard . It is a reliable source of backup or primary power for small and medium-sized businesses, workshops, offices, and service facilities.

Key technical parameters of the AP 90 I5 generator:

• ESP maximum power: 90 kVA / 72 kW

• PRP rated power: 81 kVA / 65 kW

• Rated current: 117.5 A

• Nominal voltage: 400 V

• Frequency: 50 Hz

• Generator: STRATHON ECO 90 KW, brushless, synchronous

• Generator efficiency: 93%

• Degree of protection: IP 23

• Insulation class: H

Why choose the AP 90 I5 generator?

What makes the AP 90 I5 three-phase generator stand out?
✅ The modern IVECO Stage V engine: Model F36ETVP03 with a capacity of 3.6 l and a power of 85 kW meets the emission standards according to Directive 97/68/EC.
✅ Intelligent controller: AMF 25 automatically starts the generator, monitors parameters, keeps an event log and enables remote monitoring (GPRS, LAN).
✅ Quiet operation: In a soundproof housing, the noise level is only 70 dB(A) at a distance of 7 m – ideal for urban development.
✅ Economical fuel consumption: Only 20.25 l/h at full load and the fuel tank has a capacity of 200 l .

Where is the AP 90 I5 generator best suited?

The AP 90 I5 is a great power source for:

• workshops and small plants,

• offices and administrative facilities,

• service points and shops,

• smaller warehouses and farms,

• places where compliance with Stage V emissions standards is required.

What additional options does the AP 90 I5 offer?

You can expand the unit with:

• external fuel tank,

• synchronization with other units,

• differential protection,

• remote monitoring (GSM, LAN, GPRS),

• spark arrester,

• ventilation and exhaust system,

• version with a different voltage configuration,

• external SZR cabinet (IP54),

• foundation slab.

What does the service and operation of AP 90 I5 generators look like?

How to care for the generator?
? Oil and filter change: after the first 100 hours, then every 500 hours or every year.
? Coolant: replace every 1000 hours or every 2 years.
? AMF 25 Controller: enables remote monitoring, SMS/email notifications and operation via free apps.

What are the warranty conditions for the AP 90 I5?

• Reserve mode: 60 months (or 1000 operating hours).

• Continuous operation mode: 12 months (or 1000 operating hours).

Choose a modern power supply with AP 90 I5

The AP 90 I5 offers quiet operation, a modern IVECO Stage V engine and reliable power – always where you need it.

Contact us and request an offer tailored to your needs!
