Stationary generator 79 kW AP 110 V5 - STAGE 5

Stationary generators – reliable power supply in every situation

Stationary generators with soundproof enclosures are essential where any power outage poses a risk of downtime and financial losses. They are a reliable source of emergency and continuous power for industrial plants, healthcare facilities, renewable energy farms, and infrastructure investments. A modern Stage V engine, high-efficiency generator, and advanced controller guarantee safety and comfort.

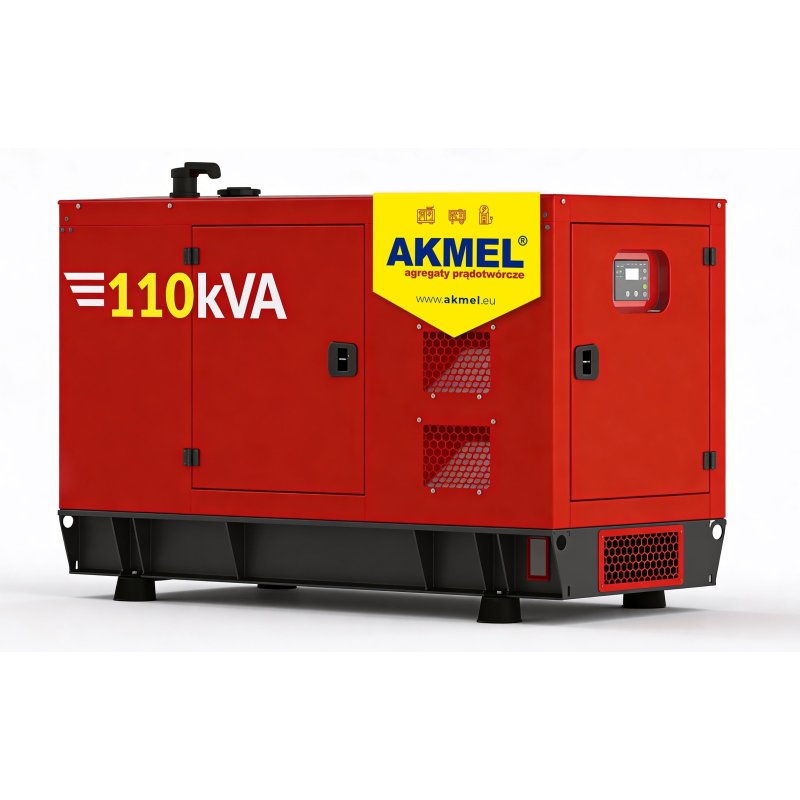

AP 110 V5 stationary generator – power and ecology in a compact form

What is the AP 110 V5 unit?

The AP 110 V5 is an efficient stationary generator with a maximum power of 110 kVA / 88 kW , equipped with a modern VOLVO TAD580VE engine that meets stringent Stage V emission standards. It is ideal as a source of emergency and continuous power in small and medium-sized facilities requiring reliable operation.

What are the key technical parameters of the AP 110 V5 generator?

• ESP maximum power: 110 kVA / 88 kW

• PRP rated power: 99 kVA / 79 kW

• Rated current: 143.6 A

• Nominal voltage: 400/230 V

• Frequency: 50 Hz

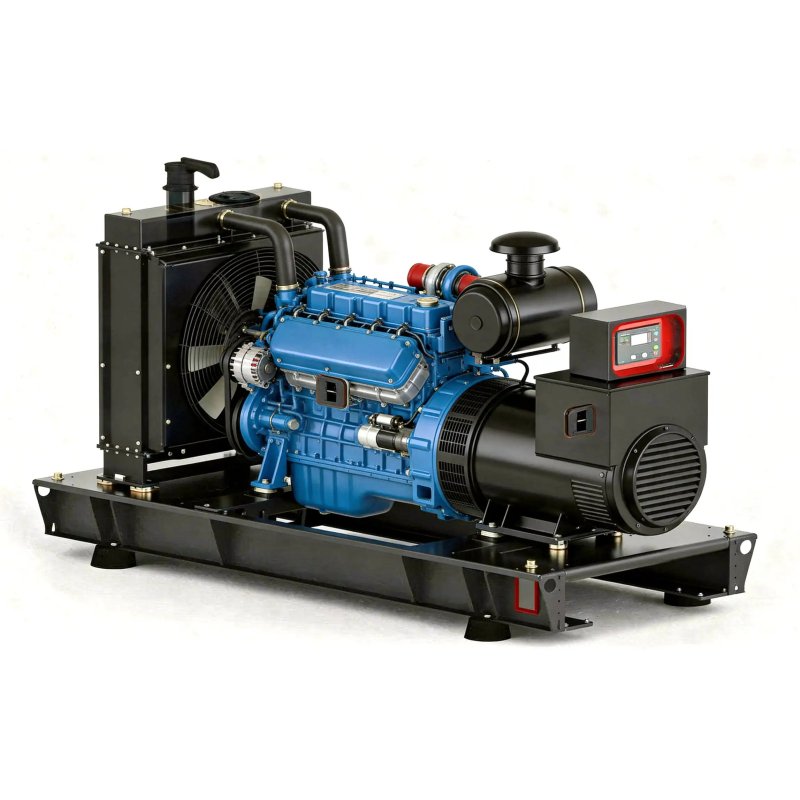

• Engine: VOLVO TAD580VE, 4-cylinder, in-line, 5.13 l, G3 electronic speed governor

• Emissions: Stage V (in accordance with Directive 97/68/EC)

• Generator: STRATHON ECO 110 KW, synchronous, brushless, efficiency 93%

• AVR Type: AVR – Automatic Voltage Regulation

• Degree of protection: IP 23, insulation class H

• Fuel consumption at 100% load: 21 l/h

• Fuel tank capacity: 200 l

• Noise level: 70 dB(A) at a distance of 7 m

• Dimensions in the housing (L x W x H): 2890 x 1110 x 1750 mm

• Weight: 1560 kg

What makes the AP 110 V5 generator stand out?

• Modern VOLVO Stage V engine – quiet, economical operation while maintaining low emissions.

• STRATHON ECO generator – AVR voltage stabilization, reliable design.

• AMF 25 controller – automatic start, network control, event log up to 119 entries, online monitoring (Modbus, GPRS, Internet).

• Soundproof housing – comfortable work at a noise level of 70 dB(A).

• Engine block heating, fault signal, vibration isolators – safety and durability of use.

Where is the AP 110 V5 power generator best suited?

• In smaller and medium-sized industrial plants

• In warehouses, workshops and service centers

• In medical facilities, hospitals and health centers

• On farms and renewable energy farms

• In places where electricity must be available at all times

What additional options does the AP 110 V5 unit offer?

• External fuel tank

• Differential current protection

• Synchronization with other units

• Spark arrester

• LAN, RS232/485, GPRS, GSM communication cards

• Remote monitoring (panel, LED panel)

• Ventilation and exhaust system

• Outdoor SZR cabinet (IP54)

• Foundation slab

What is the service and operation of AP 110 V5 generators like?

• Oil and filter change: after the first 100 hours of operation, then every 500 hours or once a year (Titan Cargo 15W40, 13 l).

• Fuel filter replacement: every 500 hours or annually.

• Coolant change: every 1000 hours or every 2 years (19.7 l).

• Online monitoring: InteliMonitor and WebSupervisor app (Android and iOS).

• Failure notifications: SMS/e-mail (with GPRS module).

What are the warranty conditions for the AP 110 V5 generator?

• Backup mode: 60 months (5 years) or 1000 operating hours with regular inspections.

• Continuous operation mode: 12 months or 1000 operating hours.

Choose reliable power supply with AP 110 V5

The AP 110 V5 offers compact power, reliability, and compliance with stringent emission standards. Choose a generator that won't let you down – wherever power must be available at all times.

Have any questions? Contact us – we'll prepare an offer tailored to your project!
