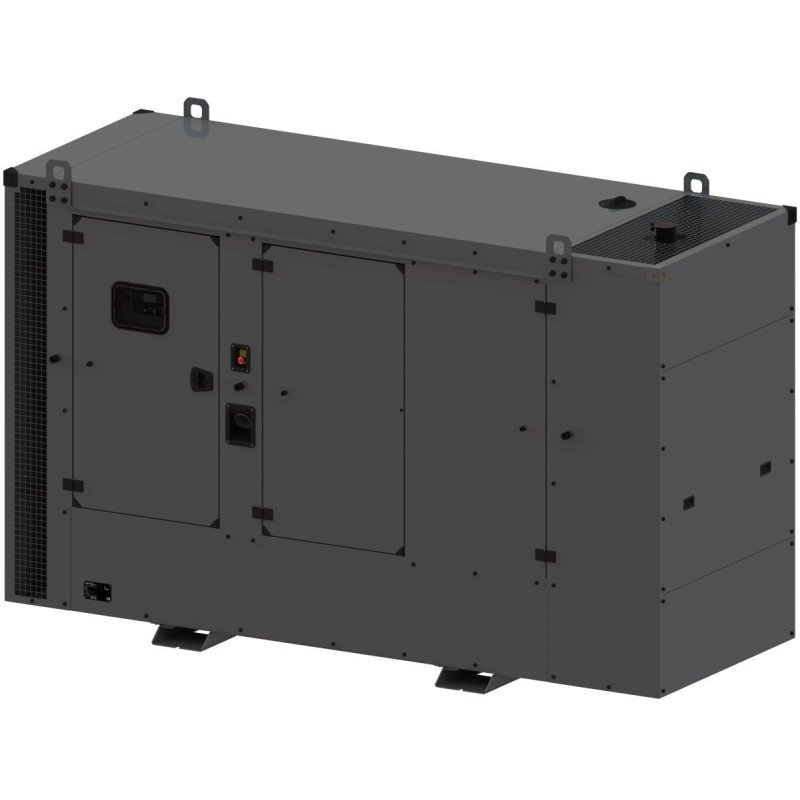

Stationary generator 240 kW FD 300 SC

FD 300 SC three-phase generator – Scania power for medium loads

What is the FD 300 SC generator?
The FD 300 SC is a robust and efficient three-phase generator with a maximum output of 330 kVA / 264 kW , designed for emergency or continuous operation in medium- and large-scale industrial plants, logistics centers, renewable energy farms, hospitals, and infrastructure facilities. Equipped with a modern Scania DC09 072A 02-13 engine, it meets emission standards in accordance with Directive 97/68/EC.

What are the key technical parameters of the FD 300 SC generator?

• ESP maximum power: 330 kVA / 264 kW

• PRP rated power: 300 kVA / 240 kW

• Rated current: 433 A

• Nominal voltage: 400 V

• Frequency: 50 Hz

• Generator: Leroy Somer, brushless, synchronous

• AVR Type: DVR, Digital

• Protection class: IP 23

• Insulation class: H

• Reactance Xd: 11.8%

• Voltage stabilization: ±0.25%

Why choose the FD 300 SC generator?

What makes the FD 300 SC stand out?
✅ Scania DC09 072A 02-13 engine: 5-cylinder, in-line, capacity 9.3 l, power 261 kW, electronic speed governor – stable operation even under heavy load.
✅ AMF 25 controller: Intuitive interface, automatic start, current and voltage measurement in 3 phases, event log (up to 119 entries!), energy meter, online monitoring (GSM, LAN, Modbus).
✅ Efficient combustion: Fuel consumption at 100% load is 61.7 l/h , and the 990 l fuel tank ensures many hours of uninterrupted operation.
✅ Quiet operation: Soundproof housing – sound pressure level of ~68 dB(A) at a distance of 7 m.

Where is the FD 300 SC power generator best suited?

FD 300 SC is a reliable energy source for:

• industrial plants,

• logistics centers and warehouses,

• renewable energy farms and infrastructure installations,

• hospitals and health care facilities,

• places where power continuity is key.

What additional options does the FD 300 SC unit offer?

You can expand the unit with:

• external fuel tank,

• synchronization with other units,

• ventilation and exhaust system,

• spark arrester,

• differential protection,

• remote monitoring (GSM, LAN, Modbus),

• execution in a different voltage configuration,

• external SZR cabinet (IP54),

• foundation slab.

What is the service and operation of FD 300 SC generators like?

How to take care of the generator?
? Oil and filter change: after the first 100 hours of operation, then every 500 hours or every year (oil pan capacity: 36 l).
? Coolant: replace every 1000 hours or every 2 years (capacity: 37 l).
? AMF 25 Controller: enables remote monitoring, SMS/email notifications, InteliMonitor and WebSupervisor.

What are the warranty conditions for the FD 300 SC?

• Reserve mode: 60 months (or 1000 operating hours) when performing periodic inspections.

• Continuous operation mode: 12 months (or 1000 operating hours).

Choose reliable power supply with the FD 300 SC

The FD 300 SC offers stable power, safety and compliance with emission standards – wherever electricity cannot fail.

Contact us and request an offer tailored to your needs!
