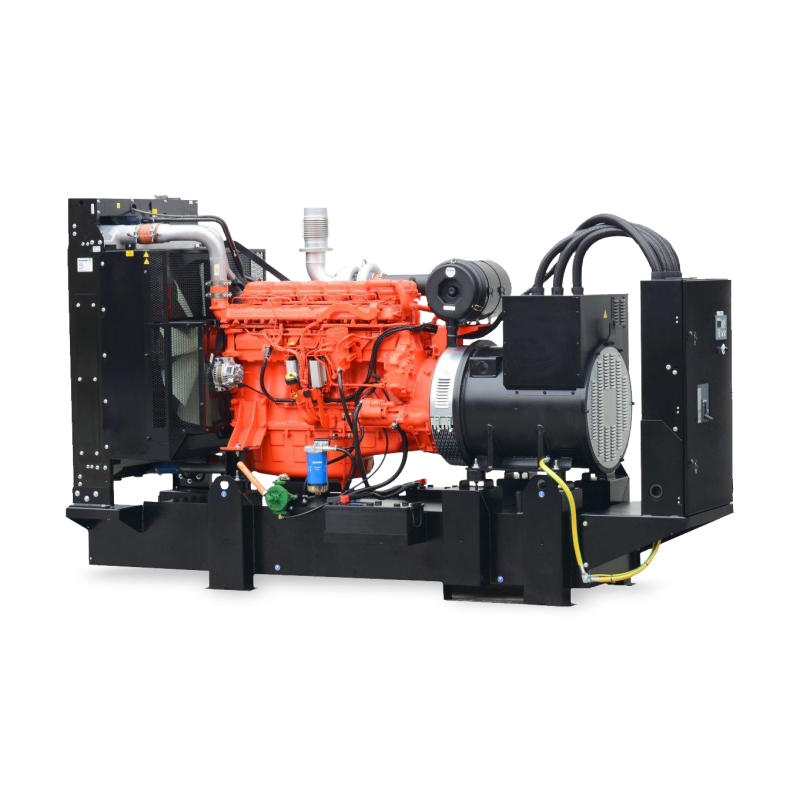

Stationary generator 292 kW FD 365 SF

FD 365 SF three-phase generator – Scania power for medium and heavy loads

What is the FD 365 SF generator?
The FD 365 SF is a robust three-phase generator with a maximum output of 400 kVA / 320 kW , designed for emergency or continuous operation in large industrial plants, logistics centers, hospitals, renewable energy farms, and infrastructure facilities. Equipped with a Scania DC13 072A 02-11 engine, it meets the requirements of the 97/68/EC exhaust emissions directive.

What are the key technical parameters of the FD 365 SF generator?

• ESP maximum power: 400 kVA / 320 kW

• PRP rated power: 365 kVA / 292 kW

• Rated current: 527 A

• Nominal voltage: 400 V

• Frequency: 50 Hz

• Generator: Leroy Somer, brushless, synchronous

• AVR Type: DVR, Digital

• Protection class: IP 23

• Insulation class: H

• Reactance Xd: 11.6%

• Voltage stabilization: ±0.25%

Why choose the FD 365 SF generator?

What makes the FD 365 SF stand out?

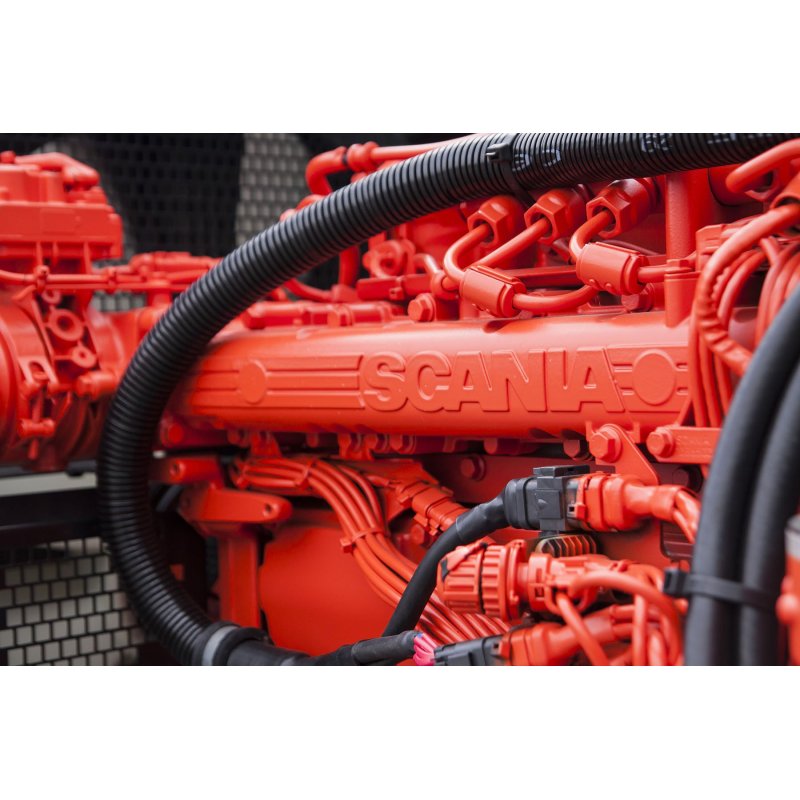

✅ Scania DC13 072A 02-11 engine: 6-cylinder in-line, capacity 12.7 l, power 320 kW, electronic speed governor – stable and reliable operation even under heavy loads.
✅ AMF 25 controller: Intuitive graphical interface, automatic start, current and voltage measurement in 3 phases, event log (up to 119 entries), energy meter, online monitoring (GSM, LAN, Modbus).
✅ Economical combustion: Fuel consumption at 100% load is 69.4 l/h , and the large 999 l fuel tank ensures many hours of trouble-free operation.
✅ Solid construction: weight 3000 kg, dimensions of the open version 3225 x 1564 x 2110 mm, foundation plate 3625 x 1964 mm.
✅ Safety: vibration isolators, exhaust compensator, muffler, power switch, electrical and mechanical parameter indicators.

Where is the FD 365 SF power generator best suited?

The FD 365 SF is a reliable energy source for:

• medium and large industrial plants,

• logistics centers and warehouses,

• renewable energy farms and infrastructure installations,

• hospitals and health care facilities,

• places where power continuity is key.

What additional options does the FD 365 SF unit offer?

You can expand the unit with:

• external fuel tank,

• synchronization with other units,

• ventilation and exhaust system,

• spark arrester,

• differential protection,

• remote monitoring (GSM, LAN, Modbus),

• execution in a different voltage configuration,

• external SZR cabinet (IP54),

• foundation slab.

What is the service and operation of FD 365 SF generators like?

How to take care of the generator?
? Oil and filter change: after the first 100 hours of operation, then every 500 hours or every year (oil pan capacity: 36 l).
? Coolant: replace every 1000 hours or every 2 years (capacity: 38 l).
? AMF 25 Controller: allows online monitoring, SMS/email notifications, InteliMonitor and WebSupervisor.

What are the warranty terms for the FD 365 SF?

• Reserve mode: 60 months (or 1000 operating hours), provided periodic inspections are performed.

• Continuous operation mode: 12 months (or 1000 operating hours).

Choose reliable power with the FD 365 SF

The FD 365 SF offers solid power, safety and compliance with emission standards – wherever electricity must be available at all times.

Contact us and request an offer tailored to your needs!
