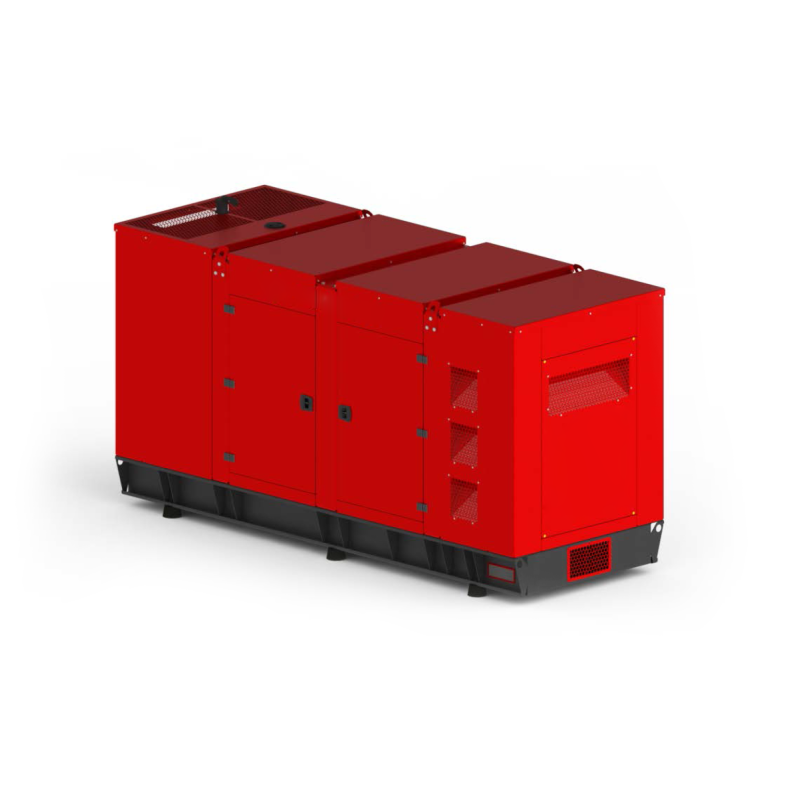

Stationary generator 360 kW AP 500 V

Stationary generators – power and safety where electricity cannot fail

Stationary, enclosed generators are a reliable solution for industry, critical infrastructure, farms, large commercial facilities, and hospitals. Thanks to powerful industrial engines, modern synchronous generators, and robust, sound-insulated enclosures, they provide stable power in emergency or continuous mode, minimizing losses and protecting your investment.

AP 500 V – a powerful stationary generator with a Volvo engine

The AP 500 V is a three-phase generator with a maximum output of 500 kVA / 400 kW , ideal for applications where power continuity is a priority. Equipped with an efficient Volvo TAD1345GE engine and a Strathon ECO 500 kW alternator, it ensures reliability, economical operation, and quiet operation.

Key features of the AP 500 V

✅ ESP maximum power: 500 kVA / 400 kW
✅ PRP rated power: 450 kVA / 360 kW
✅ Rated current: 652 A
✅ Volvo TAD1345GE engine: 6-cylinder, in-line, capacity 12.78 l, power 388 kW, electronic speed governor.
✅ Strathon ECO 500 KW generator: synchronous, brushless, insulation class H, IP 23 protection class, AVR DVR digital.
✅ AMF 25 controller: automatic start, power switching, event log, remote monitoring (optional).
✅ Quiet operation: only 70 dB(A) at a distance of 7 m.
✅ Fuel tank: 700 l – fuel consumption at 100% load: 89 l/h.
✅ Solid construction: dimensions in a soundproof housing: 4000 × 1460 × 2310 mm, weight 3950 kg.

Generator parameters

• Nominal voltage: 400 V

• Power factor: 0.8

• Type: synchronous, brushless

• Protection class: IP 23

• Insulation class: H

• Efficiency: 93%

• AVR Type: DVR, Digital

AMF 25 controller – modern control and safety

• Intuitive graphical interface

• Automatic network-generator switching

• Real-time clock

• Event log: up to 119 entries

• Current and voltage measurement in 3 phases

• Energy, operating time, fuel level and battery voltage meters

• Measurement of active, reactive and apparent power

• Support for engines with CAN protocol

• Communication RS232/485, GPRS, LAN (optional)

• Free InteliMonitor and WebSupervisor app

• SMS/email notifications (module required)

Standard equipment of the AP 500 V power generator

• Volvo TAD1345GE engine and Strathon ECO 500 KW generator

• Batteries with charger

• The electrical installation of the complex

• Vibration isolators, exhaust compensator, muffler

• Fuel tank with installation

• Auxiliary needs and power reception cabinet

• Power switch, acoustic fault signal

• AMF 25 controller

• Operating fluids (excluding fuel)

Additional options

• External fuel tank

• Synchronization with other units

• Ventilation and exhaust system

• Differential current protection

• Version with different voltage

• Outdoor SZR cabinet (IP54)

• GSM, LAN monitoring

• Spark arrester

• Foundation slab

• Warranty and post-warranty service

Operation and service of the generator

• Oil type: Titan Cargo 15W40

• Fuel filter replacement: every 500 hours or 1 year

• Oil and oil filter change: after the first 100 hours, then every 500 hours / 1 year

• Coolant: 44 l, replacement every 1000 h / 2 years

• Fuel Compliance: EN 590

• Fuel consumption at 100% load: 89 l/h

• Guarantee:

  • Reserve mode – 60 months (max 1000 operating hours with inspections)

  • Continuous operation mode – 12 months (max 1000 operating hours)

AP 500 V – guaranteed reliability

The AP 500 V is a premium stationary generator – a reliable source of power in any situation. A reliable Volvo engine, a robust Strathon generator, and an AMF 25 controller ensure complete control and operational safety.

Have any questions? Contact us – we'll find the perfect configuration for your needs!
