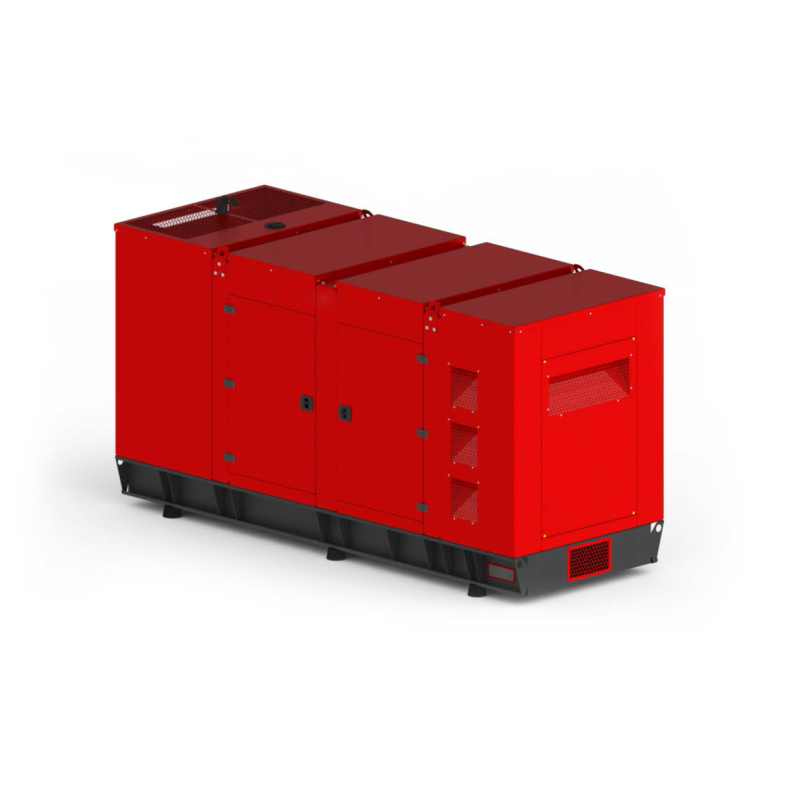

Stationary generator 280 kW AP 390 V

Stationary generators – a reliable source of energy in every situation

Stationary, enclosed generators are a proven solution for industry, renewable energy farms, hospitals, commercial buildings, and critical infrastructure facilities. Modern engines, synchronous generators, and sound-proof enclosures ensure stable power in emergency and continuous operation, minimizing the risk of costly downtime.

AP 390 V – a powerful generator with a Volvo engine

The AP 390 V is a three-phase generator with a maximum output of 390 kVA / 312 kW , ideal for industrial and logistics facilities. Equipped with a Volvo TAD1342GE engine and a Strathon ECO 390 kW alternator, it guarantees reliable performance and economical operation.

The most important features of the AP 390 V generator

✅ ESP maximum power: 390 kVA / 312 kW
✅ PRP rated power: 351 kVA / 280 kW
✅ Rated current: 508 A
✅ Volvo TAD1342GE engine: 6-cylinder, in-line, capacity 12.78 l, power 275 kW, electronic speed governor.
✅ Strathon ECO 390 KW generator: synchronous, brushless, insulation class H, IP 23 protection class, digital AVR.
✅ AMF 25 controller: automatic power switching, parameter monitoring, event log, remote monitoring (optional).
✅ Quiet operation: noise level only 70 dB(A) at a distance of 7 m.
✅ Fuel tank: 500 l, fuel consumption at 100% load: 66 l/h.
✅ Compact dimensions: 4000 × 1460 × 2310 mm, weight 3900 kg.

Generator parameters

• Nominal voltage: 400 V

• Power factor: 0.8

• Type: synchronous, brushless

• Protection class: IP 23

• Insulation class: H

• Efficiency: 93%

• AVR type: digital

AMF 25 controller – full operation control

• Intuitive graphical interface

• Automatic start and power switching

• Real-time clock

• Event log up to 119 entries

• Current and voltage measurement in 3 phases

• Active and reactive energy, operating time, and fuel level meters

• Generator protection: frequency, voltage, asymmetry, overload

• Communication RS232/485, GPRS, LAN (optional)

• Free InteliMonitor and WebSupervisor app

• SMS/email notifications (module required)

Standard equipment of the AP 390 V generator

• Volvo TAD1342GE engine and Strathon ECO 390 KW generator

• Batteries with charger

• The electrical installation of the complex

• Vibration isolators, exhaust compensator, muffler

• Fuel tank with installation

• Auxiliary needs and power reception cabinet

• Power switch, acoustic fault signal

• Engine block heating system

• AMF 25 microprocessor controller

• Operating fluids (excluding fuel)

Additional options

• External fuel tank

• Differential current protection

• Synchronization with other units

• GSM, LAN, GPRS monitoring

• Spark arrester

• Ventilation and exhaust system

• Outdoor SZR cabinet (IP54)

• Version with different voltage

• Foundation slab

• Warranty and post-warranty service

Operation and service

• Oil type: Titan Cargo 15W40

• Fuel filter replacement: every 500 hours or once a year

• Oil and oil filter change: after the first 100 hours, then every 500 hours / 1 year

• Coolant: replacement every 1000 h / 2 years, capacity 44 l

• Fuel compliance: EN 590 standard

• Fuel consumption at 100% load: 66 l/h

• Guarantee:

  • Reserve mode – 60 months (max 1000 operating hours with inspections)

  • Continuous operation mode – 12 months (max 1000 operating hours)

AP 390 V – power and safety for years

The AP 390 V is a reliable stationary generator that ensures continuous power even in harsh conditions. High-quality components, quiet operation, and an intuitive controller guarantee reliability and safety every day.
