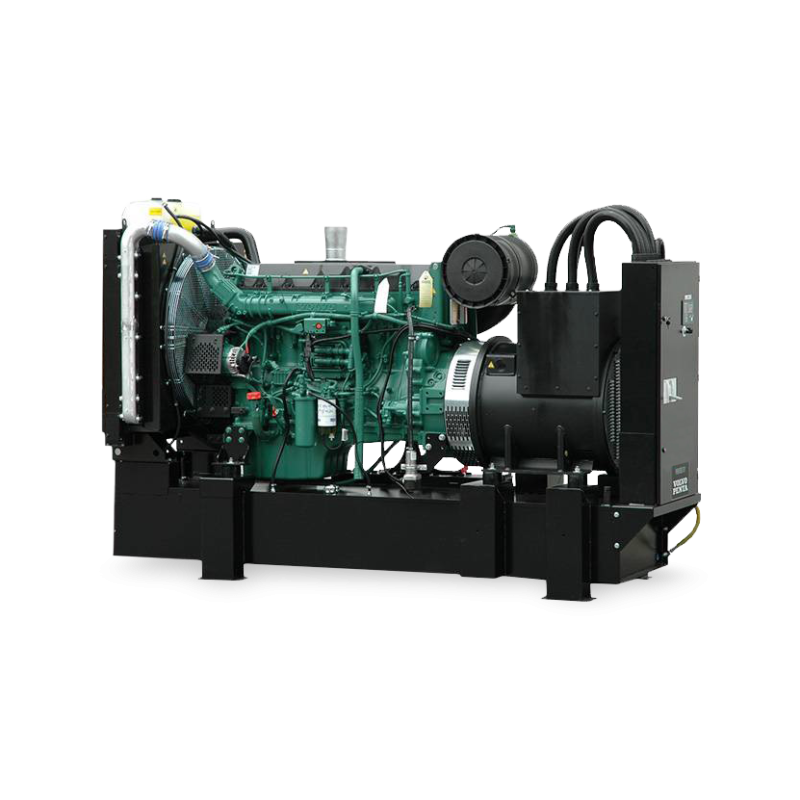

Stationary generator 360 kW AP 500 VO

Open generators – power in ready-made technical rooms

Three-phase generators in an open version are an economical solution for generators operating in a professionally prepared boiler room or engine room. The absence of a soundproof enclosure ensures easy service access, free airflow, and the ability to connect a dedicated ventilation and exhaust system. This solution guarantees maximum efficiency and installation flexibility.

AP 500 VO – a robust open unit with a Volvo engine

The AP 500 VO is a stationary, three-phase, open-frame generator with a maximum output of 500 kVA / 400 kW , designed to reliably power industrial, agricultural, and commercial facilities. The Volvo TAD1345GE engine and Strathon ECO 500 kW generator guarantee high efficiency and reliability in all conditions.

The most important parameters of the AP 500 VO

✅ ESP maximum power: 500 kVA / 400 kW
✅ PRP rated power: 450 kVA / 360 kW
✅ Rated current: 652 A
✅ Rated voltage: 400 V
✅ Frequency: 50 Hz
✅ Volvo TAD1345GE engine: 6-cylinder, in-line, capacity 12.78 l, power 388 kW, electronic speed governor, 1500 rpm.
✅ Strathon ECO 500 KW generator: synchronous, brushless, insulation class H, IP 23 protection, AVR DVR digital, efficiency 93%.
✅ AMF 25 controller: automatic switching, parameter measurement, event log, remote monitoring (optional).
✅ Fuel tank capacity: 700 l – fuel consumption at 100% load: 89 l/h.
✅ Dimensions (open): 3700 × 1400 × 2610 mm, weight 3480 kg.
✅ Sound pressure: 82 dB(A) at a distance of 7 m.

AMF 25 Controller – Reliable Control and Monitoring

• Intuitive graphical interface

• Real-time clock with battery

• Automatic network-generator switching

• Event log up to 119 entries

• Current and voltage measurement in 3 phases

• Measurement of active, reactive and apparent power

• Generator active and reactive energy meter

• Working time counter

• Battery voltage and fuel level measurement

• Generator protection (frequency, voltage, asymmetry, overload)

• Support for engines with CAN J1939 protocol

• Communication RS 232/485 Modbus, GPRS, LAN (optional)

• Free InteliMonitor system and WebSupervisor application

• SMS/email notifications (optional)

Standard equipment of the AP 500 VO power generator

• Volvo TAD1345GE engine and Strathon ECO 500 KW generator

• Batteries with charger

• The electrical installation of the complex

• Fuel tank with installation

• Vibration isolators, exhaust compensator, muffler

• Auxiliary needs and power reception cabinet

• Power switch, acoustic fault signal

• AMF 25 controller

• Electrical and mechanical parameter indicators

• Operating fluids (excluding fuel)

Additional options

• External fuel tank

• Synchronization with other units

• Ventilation system

• Exhaust gas discharge system

• Differential current protection

• Version with different voltage

• Outdoor SZR cabinet (IP54)

• Spark arrester

• GSM, LAN, GPRS monitoring

• Foundation slab

• Warranty and post-warranty service

Operation and service of the generator

• Oil type: Titan Cargo 15W40

• Oil pan capacity: 36 l

• Coolant type: coolant, capacity 44 l, replacement every 1000 h / 2 years

• Fuel compliance: EN 590 standard

• Fuel consumption at 100% load: 89 l/h

• Foundation plate dimensions: 3100 × 3010 mm

• Guarantee:

  • Reserve mode: 60 months (max 1000 operating hours with inspections)

  • Continuous operation mode: 12 months (max 1000 operating hours)

AP 500 VO – power and reliability for your boiler room

The AP 500 VO is an open-air generator—ideal for operation in professionally prepared spaces. A high-quality Volvo engine, Strathon generator, and AMF 25 controller guarantee safety and reliability.

Want an offer tailored to your needs? Contact us – we'll prepare a configuration that meets your requirements!
