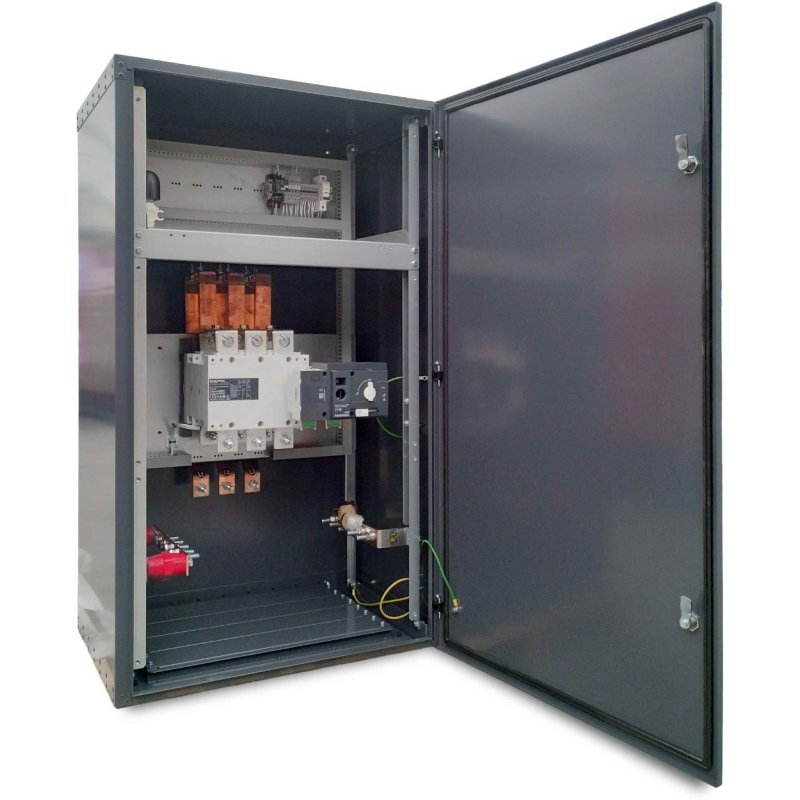

ATS system on an 800A switch

ATS systems on the switch – automatic reliability

Auxiliary power supply (AWS) cabinets with a switch are a practical and proven solution wherever automatic switching between the mains and a generator is crucial. The basic version relies on a control signal from the generator, making it simple and ergonomic. An extended version with its own controller allows for the operation of multiple AWS cabinets with a single generator or the construction of more advanced automation systems. Upon request, the AWS can be manufactured in a four-pole version and adapted for outdoor operation.

ATS 800 system – reliable switching up to 503 kVA

What is SZR 800?

The SZR 800 is a backup power cabinet with an ATyS r 3P three-pole switch, rated current 800 A and power 503 kVA . In the basic version, control is performed directly from the generator (e.g. AMF 25), which allows for reliable and automatic operation.

Key technical parameters of the SZR 800

• Rated power: 503 kVA

• Rated current (AC-1): 800 A

• Nominal voltage: 400/230 V

• Frequency: 50 Hz

• Switch type: ATyS r 3P, 800 A

• Control: from the unit (AMF 25) – basic version

• Lock type: mechanical/electric

• Protection class: IP 43

• Connection cable: 2 x 240 mm²

• Operating temperature range: -25°C to +40°C

• Operating conditions: up to 2000 m above sea level

• Dimensions (L x W x H): 700 x 450 x 1200 mm

• Weight: 85 kg

What makes the SZR 800 stand out?

• ATyS three-pole switch – reliable operation in any installation.

• Mechanical and electrical lock – safe use.

• Possibility of control from the generator – simple, proven configuration.

• IP 43 protection class – ready to work in various conditions.

• Optional four-field version.

Additional features – SZR 800 with its own controller

Thanks to the ATS2-70 controller, the extended version SZR 800 allows:

• Operation of several ATS cabinets with one generator,

• Advanced switching and automation scenarios,

• Online operation monitoring, which increases power security.

Optional equipment SZR 800

• Foundation plinth: weight 14.5 kg, height 500 mm

• Ground plinth: weight 19 kg

• Set for outdoor installation: roof, controller cover, heater

• Additional sockets and security features – according to customer needs

• Four-field version - on request

Choose automatic safety with SZR 800

The SZR 800 offers reliability, expandability, and operational safety in any situation. Choose the version with an additional controller or opt for a simple unit-controlled system – always tailored to your installation.

Have any questions? Contact us – we'll help you choose the best ATS system!
