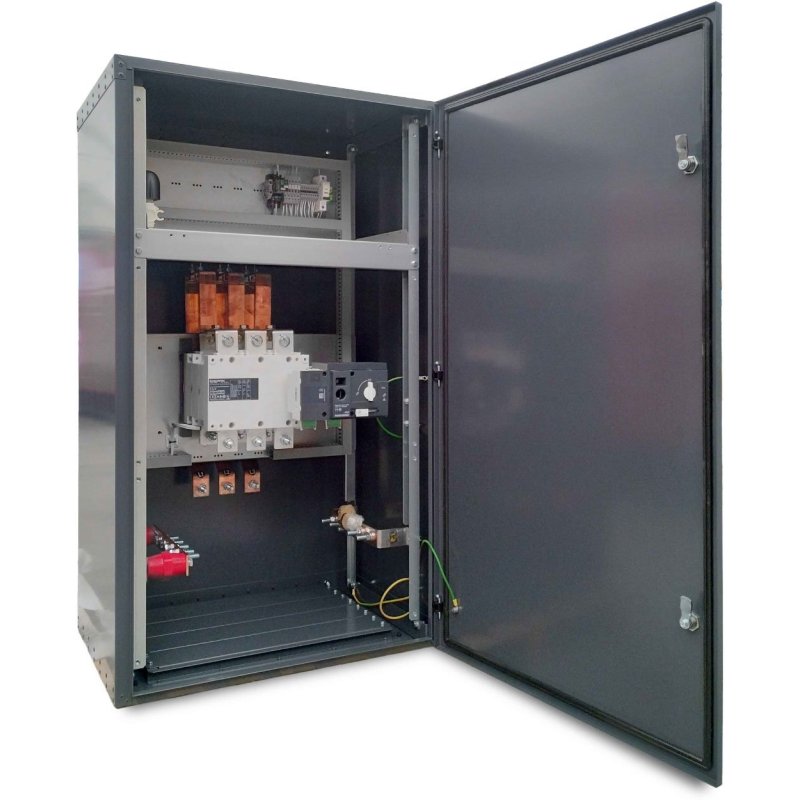

ATS system on a 200A switch

ATS systems on the switch – automatic power supply safety

Auxiliary power supply (AWS) cabinets based on a switch are a proven method for automatic power switching between the mains and a generator. The basic version relies on a control signal from the generator, making it ergonomic and easy to use. The advanced version, equipped with its own controller, allows for the operation of multiple AWS cabinets with a single generator and the expansion of the system with additional functionalities. Upon request, the AWS can be manufactured in a four-pole version and adapted for outdoor operation.

SZR 200 system – automatic switching at power up to 125 kVA

What is SZR 200?

The SZR 200 is a backup power cabinet based on the reliable ATyS r 3P three-pole switch, with a rated current of 200 A and a power of 125 kVA . In the basic version, control is performed from the generator (e.g., AMF 25), which allows for reliable, automatic power switching.

Key technical parameters of the SZR 200

• Rated power: 125 kVA

• Rated current (AC-1): 200 A

• Nominal voltage: 400/230 V

• Frequency: 50 Hz

• Switch type: ATyS r 3P, 200 A

• Control: from the unit – AMF 25 (basic version)

• Lock type: mechanical/electric

• Protection class: IP 43

• Connection cable: 70 mm²

• Operating temperature range: -25°C to +40°C

• Operating conditions: up to 2000 m above sea level

• Dimensions (L x W x H): 600 x 320 x 1200 mm

• Weight: 55 kg

What makes the SZR 200 stand out?

• Reliable ATyS switch – proven operation in all conditions.

• Simple operation – automation controlled by a signal from the generator.

• Mechanical and electrical interlock – switching safety.

• IP 43 housing – durability and resistance to operating conditions.

• Possibility of making a four-field version.

Additional features – SZR 200 with its own controller

The extended version of the SZR 200 can be equipped with the ATS2-70 controller, which enables:

• Support for multiple ATS cabinets with one generator.

• Creating more advanced automation scenarios.

• Full online work and status monitoring – even greater security.

Optional equipment SZR 200

• Foundation plinth: weight 14.5 kg, height 500 mm

• Ground plinth: weight 19 kg

• Set for outdoor installation: roof, controller cover, heater

• Four-field version - on request

• Additional sockets and security features – according to customer needs

Choose a reliable switch with SZR 200

The SZR 200 is a compact, reliable and expandable solution – where power continuity is crucial.

Have any questions? Contact us – we'll find the best ATS system for your needs!
